1500C compact internal vacuum hot isostatic press furnace for Aluminum alloy; titanium alloy; high temperature alloy

FOB Reference Price:Get Latest Price
  • 1 - 1 Sets
    $22,600.00
  • >=2 Sets
    $18,000.00
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Classification:
Laboratory Heating Equipments
Place of Origin:
Henan, China
Brand Name:
CYKY
Model Number:
CYCM-HIP-1500
Furnace Chamber:
SS304 steel
Inside Dia:
205mm
Height:
250mm
Max. Working Pressure:
10MPa
Working Gas:
Ar, N2
Max. Power:
5.5KW
Name:
hot isostatic press furnace
Warranty:
one year
Certificate:
CE/TUV
Keywords:
hot isostatic press furnace
Supply Ability
Supply Ability:
210 Set/Sets per Month hot isostatic furnace
Packaging & Delivery
Packaging Details
Plastic paper inside,polyfoam filled,wooden box outside
Port
Zhengzhou,etc.
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated

1500C compact internal vacuum hot isostatic press furnace for Aluminum alloy; titanium alloy; high temperature alloy

Product Description



CYCM-HIP-1500 is a compact internal heated isostatic pressing ( HIP ) with 80 ID x 130 H mm vertical heating

zone. The furnace can operate under a maximum working temperature of 1200°C and a maximum pressure

of 10 Mpa with both inert and oxygen gas.

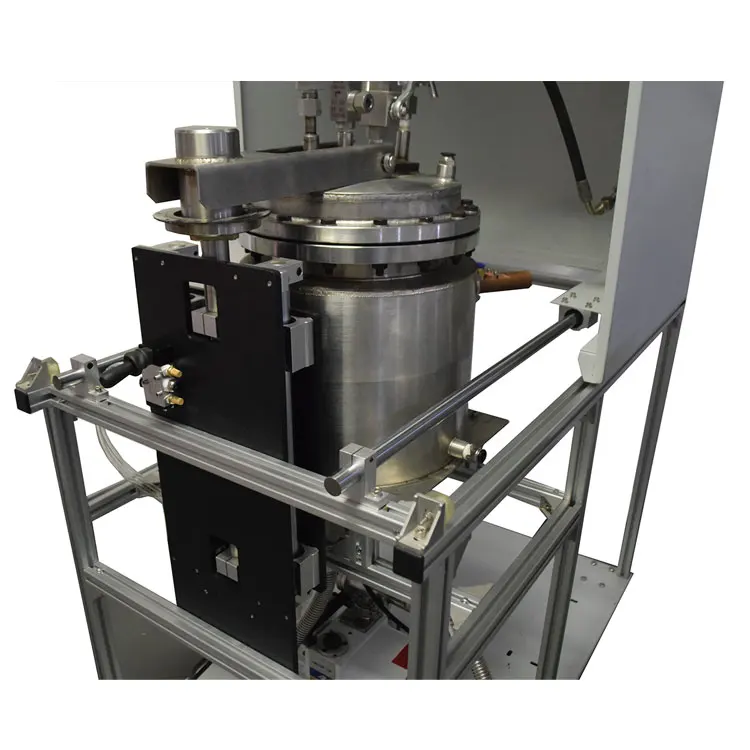

Structure

Furnace chamber is made of stainless steel ( SS304 )

Pressure release valve is built in to avoid the pressure beyond max pressure.

Steel explosives proof box is included, furnace can be slid into the box during operation for safe operation

Mobile cart is included for easy moving to safety location

  Furnace Chamber

Water Cold Furnace case is made of SS304 steel

Inside Dia:    205 m

Outside Dia: 271 mm

Height:         250 mm

Digital high-pressure sensor and  gauge are included

1/4" Gas inlet and outlet with high-pressure valves are included

Safety pressure valve is installed

Water cooling jacket  and water chiller are included

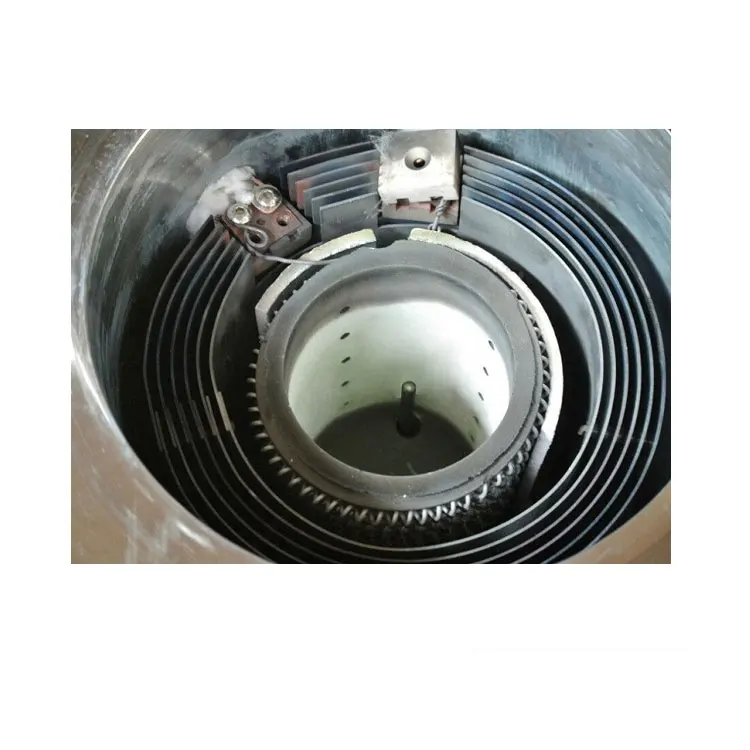

 Heating Zone



FeCrAl resistance wire heating with multi-reflection plates

Inside Diameter:   80 mm

Length:               130 mm

Capacity:               0.65 L

Max. sample size :    70 mm dia x 130 mm H

Max. Working Temperature:     1200ºC  max.

Heating Rate:  10ºC/min

 Temperature Control

30 Segment programmable digital temperature controller is included

Over-temperature and thermal couple breaking are protected

Temperature accuracy:  +/-  1°C Temperature Control

S type thermal couple built in

 Max. Working Pressure

10 MPa  at 1200ºC under Ar gas

Working Gas:    Ar, N2   ( if use O2, please let us know, we have to change heating element )

Two pressure release valves are built in for double safety:

one electric-magnetic valve and one mechanical check valve, which

will release pressure at the setting point.

 Dimension
& Weight

1000 L x 650 W x 1450 H ( mm)  @ 250 kg weight

 Vacuum Level

The furnace also can be used as a vacuum furnace with optional vacuum pump

Double stage mechanical pump can reach 10- 2 torr

Turbo pump can reach 10-5 torr

 Power

208 - 240VAC,  50-60 Hz

5.5KW Max.

  Compliance

CE Certified
