150W DC power supply Plasma Sputtering Coater with Film thickness monitor

FOB Reference Price:Get Latest Price
$8,100.00 - $9,500.00 / Set | 1.0 Set/Sets (Min. Order)
Model Number:
CY-PSP180G-3TA
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Coating Production Line
Substrate:
metal
Machine Type:
Coating machinery
Coating:
Vacuum Coating
Place of Origin:
China
Brand Name:
CYKY
Voltage:
Single phase 220 VAC, 50 / 60Hz
Power(W):
150W
Dimension(L*W*H):
360mm*300mm*470mm
Weight:
~40kg
Certification:
CE
Warranty:
1 YEAR
After-sales Service Provided:
Video technical support, Online support
Key Selling Points:
Accurate temperature control
After Warranty Service:
Video technical support, Online support
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Local Service Location:
None
Showroom Location:
None
Chamber Size:
180mm*150mm
Chamber Material:
High Purity Quartz
Sample Stage Size:
Diameter138mm
Rotate Speed:
1-20rpm Adjustable
Sputtering Head:
3
Ultimate Vacuum:
10-1 PA
DC Max. Power Supply:
150W
Dimension:
360mm*300mm*470mm
Supply Ability
Supply Ability:
210 Set/Sets per Month
Packaging & Delivery
Packaging Details
plastic paper inside,polyfoam filled,wooden box outside
Port
Zhengzhou,Qingdao,etc.
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
150W DC power supply Plasma Sputtering Coater with Film thickness monitor

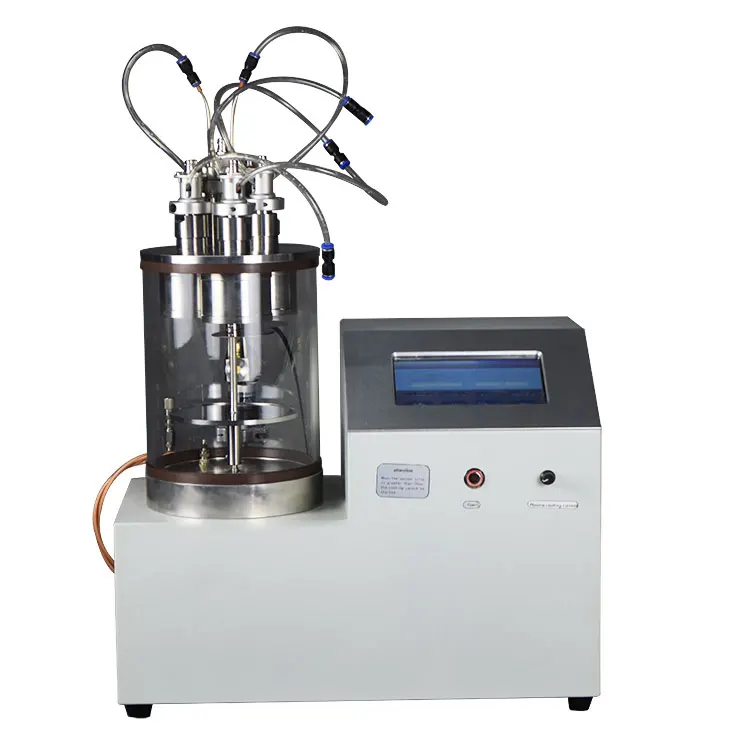

Brief Introduction of Three-head Plasma Sputtering Coater:

CY-PSP180G-3TA is a compact three-head rotary plasma sputtering coater with a touch screen digital controller. Standard plasma sputtering target is 2 inches, for single-layer or multi-layer film. 150W DC power supply can be used for metal sputter coating, such as gold, silver and copper. Besides, this coater is equipped with a gas connection for protective gas.

Application of Three-head Plasma Sputtering Coater:
Used for metal sputter coating, such as gold, silver and copper

Technical parameter of Three-head Plasma Sputtering Coater:

Input Power Single phase 220 VAC, 50 / 60Hz
800W (including vacuum pump)
Vacuum chamber Chamber size: φ180mm*150mm
Chamber material: High purity quartz
Opening mode: Top cover removable
Sample stage Stage size: φ138mm
Rotate speed: 1 - 20rpm adjustable
Sputtering distance range: 20 - 35 mm adjustable
Sputtering head Quantity: 3
Target size requirements: 2 inches Dia. * max. 2.5 mm Thickness
Vacuum system

Mechanical pump: Double stage rotary vane pump
Pumping rate: 4 m3/h (1.1 L/S)
Ultimate vacuum: 10-1 Pa
Inlet/outlet interface: KF16
Vacuum measuring: resistance vacuum gauge
DC power supply Quantity: 1
Application: for metal sputter coating, such as gold, silver and copper
Max. output power: 150W
Dimension 360mm*300mm*470mm
Net weight ~40kg
Warranty One year limited with lifetime support



Film thickness monitor


Power supply requirement: DC 5V(±10%) Max. 400mA
Resolution: +/- 0.03Hz (5-6MHz), 0.0136Ã/ measuring (Aluminum)
Accuracy: +-/05% thickness +1
Measurement speed: 100mS-1S adjustable
Measurement range: 500 000Ã (Aluminum)
Standard sensor crystal: 6MHz
Communication interface: RS-232/485
Display precision: 8-digit LED display
Maximum dimension: 90 * 50 * 18mm (L* W * H)
Working temperature range: 0-50 °C
Humidity range: 5%-85%RH, no condensed water


Related photos of Three-head Plasma Sputtering Coater:
