Durable lab heating equipment box muffle furnace 1400c

FOB Reference Price:Get Latest Price
$999.00 - $1,999.00 / Set | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Classification:
Laboratory Heating Equipments
Brand Name:
CYKY
Model Number:
CY-M1200-12LT
Place of Origin:
Henan, China
Product name:
economic furnace
usage:
dry materials, high temperature sintering, process reaction
Heating element:
resistance
features:
box type
Chamber material:
Alumina Fiber
Heating rate:
Suggestion 0~20℃/min
Thermal couple:
k Type
sealing method:
door stopper
working temperature:
1100℃
cetificate:
CE
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden box outside ,filled with poiyfoam ,and plastic paper inside
Port
Qingdao, Tianjing, Shanghai, Ningbo and etc.
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Product Description
Chamber Dimensions
Size: 12 x 12 x 12"
Capacity: 27 liters (1728 cubic-inches)
Voltage
208~240V AC, Single phase, 50/60 Hz
Operating Temperature
1100 °C (Continuous)
1200°C Max. (< 3 hours)
Temperature Stability
±1 °C
Temperature Uniformity
+/- 5 °C over 120 mm (12)  1100°C
+/- 2 °C over 80 mm (7)  1100 °C
Max. Heating Rate
10 °C/min
Shipping Dimensions
 48 x 40 x 49" (D x W x H)

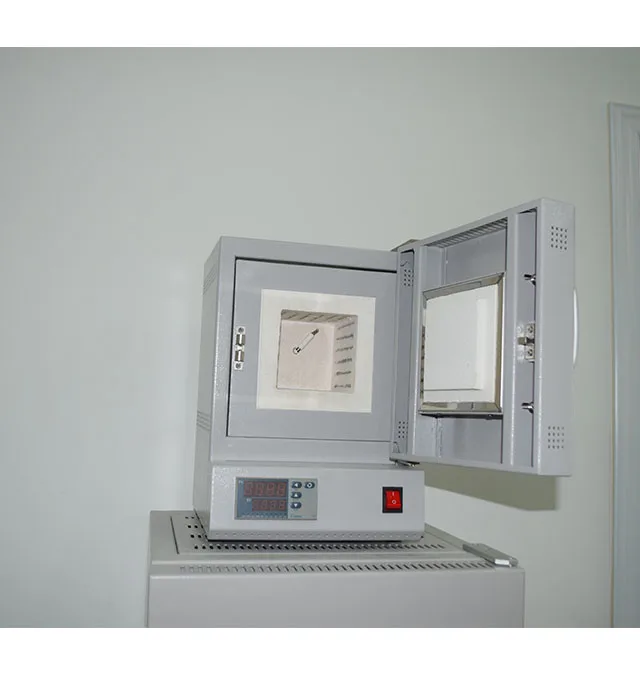

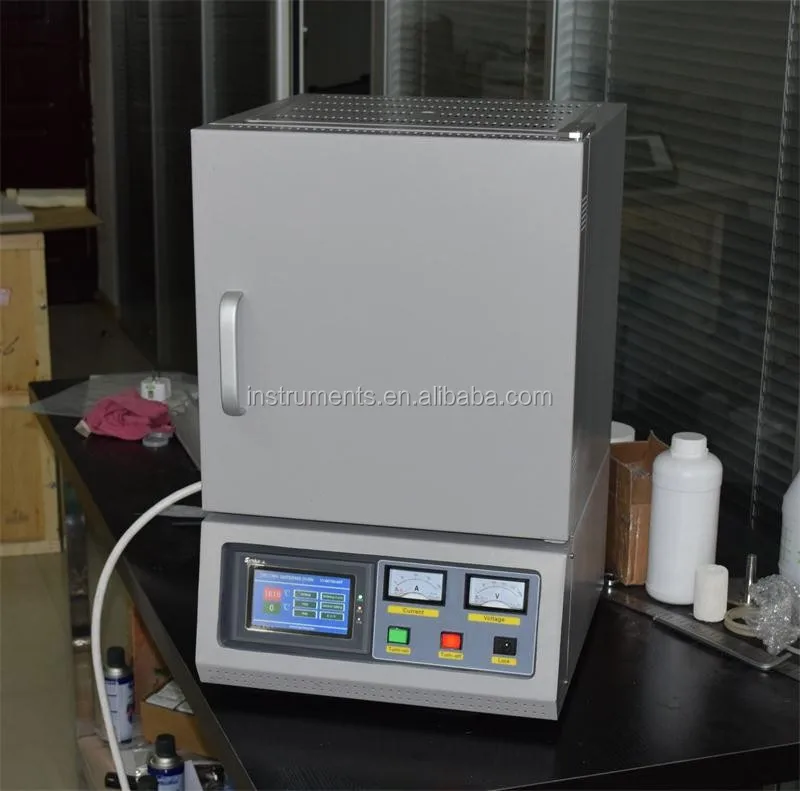

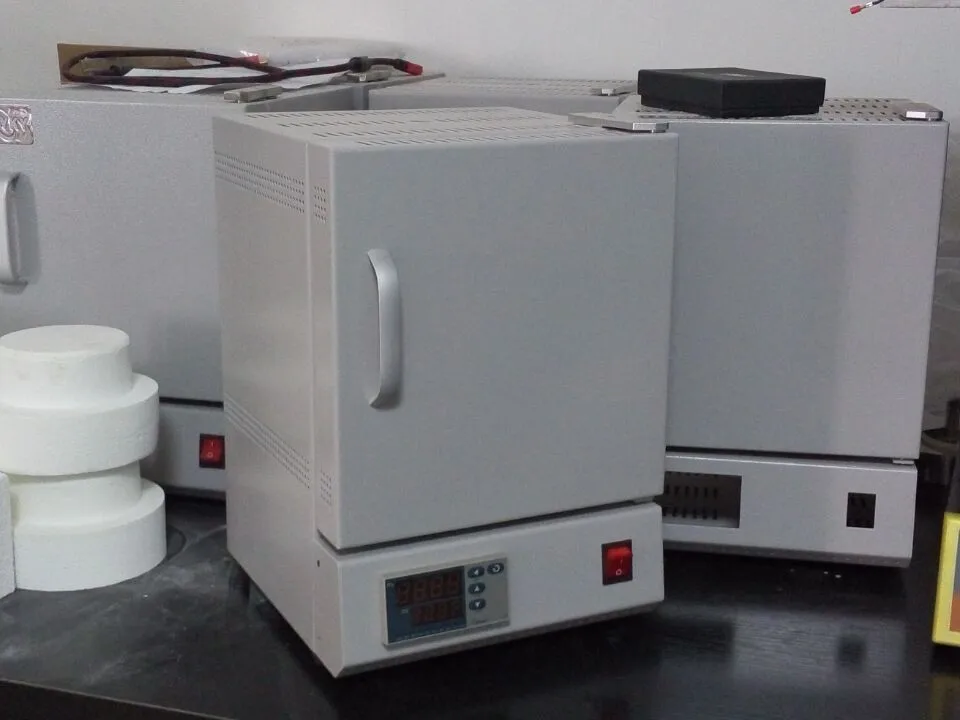

Detailed Images

Power


7.5 KW Max. at 10 °C/min to 1200 °C

40 A fuse (installed)
Note:Power cable included , but without plug. Please install a plug by your
own or choose a plug according to your country or your lab requirement

Structure

High purity fibrous alumina insulation for maximum energy saving .

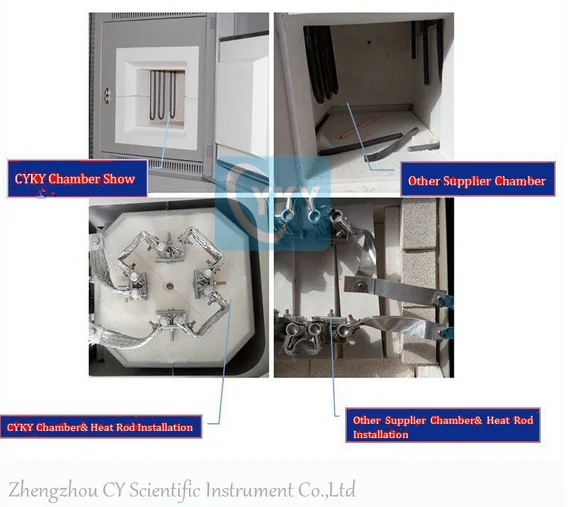

Heating elements on all three sides of interior chamber for fast heating and enhanced temperature uniformity.
Double layer steel structure with air cooling fan to keep furnace's exteriors safe to touch.

Temperature Controller

PID automatic control with 30 programmable segments for precise control.
Built in PID Auto-Tune function with

overheating & broken thermocouple protection.
+/- 1 ºC temperature accuracy.

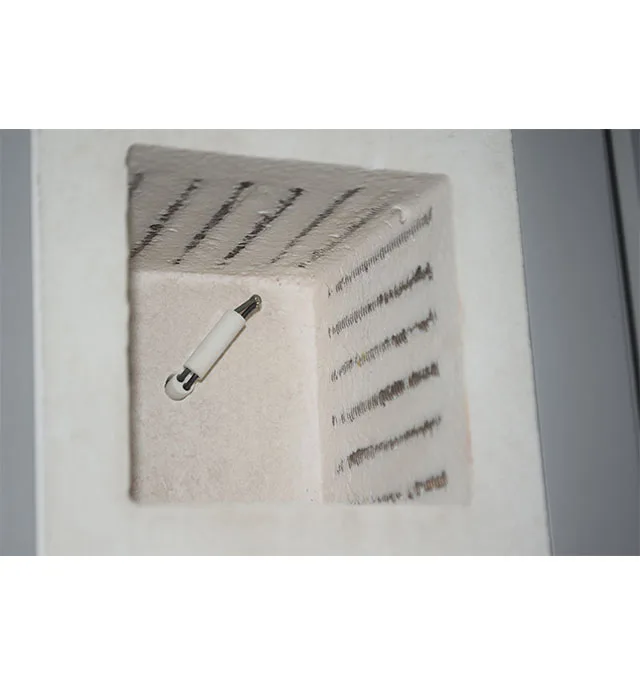

K type thermocouple installed for immediate use

Safety interlock will automatic power off the furnace when door is opened.

Built-in vent port (top) to remove undesirable
contaminants and moisture and extend the lifespan
of the heating elements and furnace.
Gas Fitting & Exhaust
One 1/4" barbed Gas Inlet installed onback panel of furnace.
One gas exhaust port is built on the top of the furnace casing.
Shipping Weight
 350 lb
Warranty
One year limited warranty with life time support.
Compliance
CE Certified.

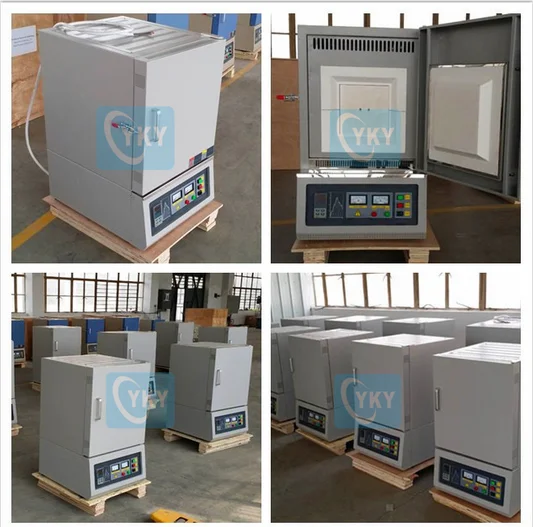

Packing & Delivery
Our Company

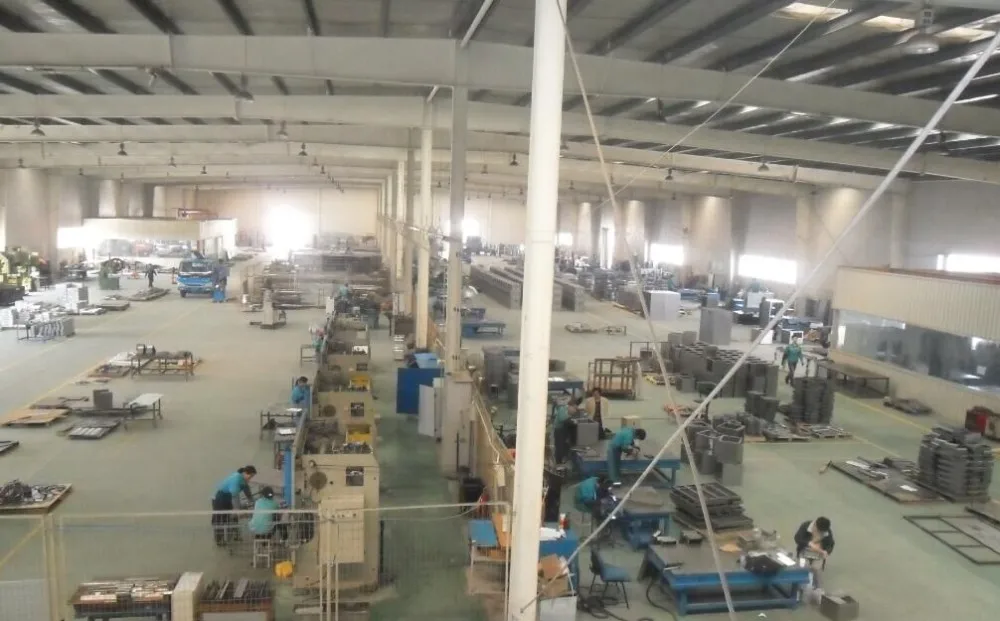

Factory

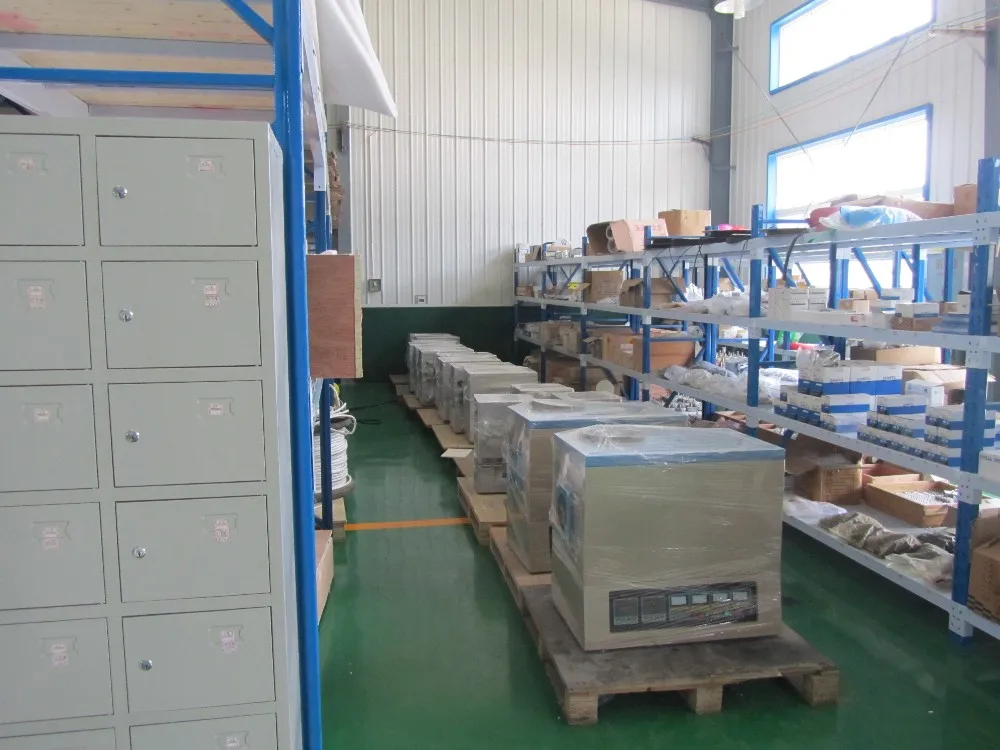

Warehouse

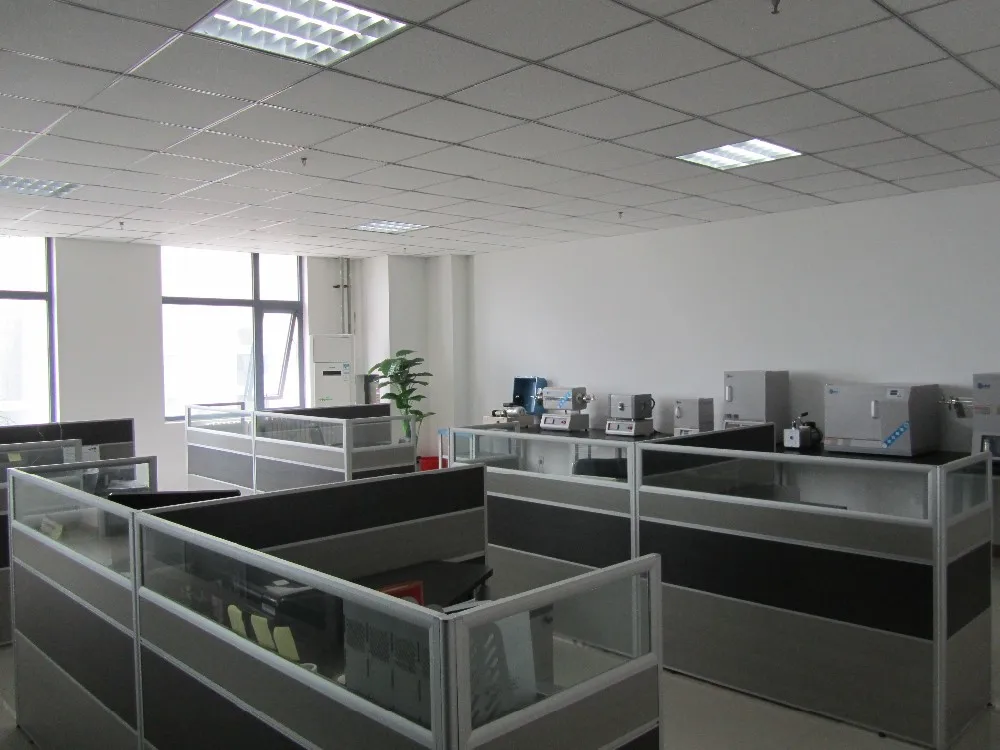

Office

Zhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in the research and development,design, manufacturing and sales of equipment used in scientific researches,Independence and innovation is the company's tenet..It is a high-tech companies that engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches.Mainly focus on Our main products include: microwave sintering furnace, dental porcelain furnace, tube furnace,

muffle furnace,,zirconia sintering furnace,Phosphor powder sintering furnace,crystal sintering furnace, battery material sintering furnace, CVD system, relative accessories and etc. We determined to do advanced materials preparation equipment manufacturers and suppliers of leader.
