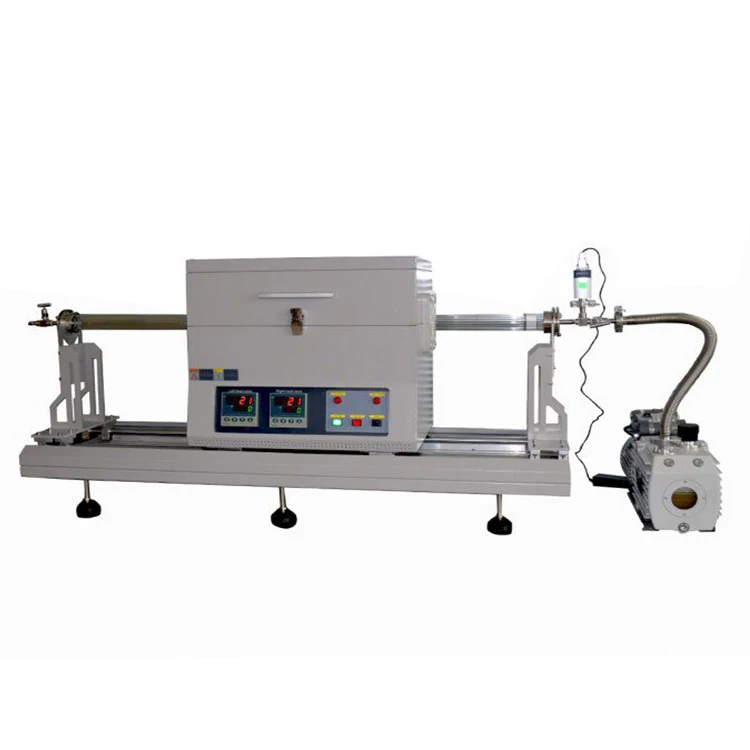

Single zone Sliding RTP rapid thermal processing tube furnace for laboratory
Introduction of RTP tube furnace
CY-OTF-1200X-80SL is a slide-able tube furnace with 3"IDx55" L quartz tube and flanges and a maximum working temperature up to 1200°C. One pair of sliding rail is installed on bottom of furnace to allow sliding the furnace from one side to another to achieve max. heating and cooling rates up to 100°C/min. For fastest heating, the furnace may be pre-heated to a desired temperature and then be slided to the sample's position. As for fastest cooling, the furnace can be slided to another side after sample heating is completed. Moreover, the heating and cooling rates may reach 15°C/s under vacuum or inert gases. This furnace provides an alternative for rapid thermal processing at the lowest cost.
Size: OD: 3.2" x ID: 3.0" x Length: 55" (inch) or OD: 80 x ID 75 x Length 1400 ( mm)
Two foam ceramic blocks are included which must be placed inside tube to avoid heat
radiation damaging O-ring
PID automatic control with 30 programmable segments for precise control of heating rate,
cooling rate and dwell time.
Built-in over temperature alarm and protection allows for operation without attendant.
Two K type thermal couples are included. One is bilt in furnace to control furnace
temperature, and another inserted into tube to monitor sample real temperature profile.
One NIST certified thermometer is included to connect to the thermal couple inside tube.
the meter has RS232 Interface with Windows Software which can record temperature
profile by PC.
+/ - 1°C
Stainless steel vacuum flanges are installed on both ends of tube with heavy duty support.
Right flange: KF-25 pump connector and needle valve.
Left flange: one needle valve and 1/4" thermocouple feed-through and digital vacuum gauge.
An 24" length x 1/4" dia. K type thermocouple (included) connected to an Omega temperature
calibrator (included) will be inserted through this flange to monitor the heating and cooling
rates of the sample's position during furnace sliding.
10E-5 torr can be reached by molecular pump
10E-2 torr by mechanical pump.
Sliding Rails / Table
Double sliding rail made by Cr plated steel
Sliding length: 1200 mm
550 x 380 x 520 mm ( furnace only)
1500 x 380 x 620 mm ( furnace + sliding )
One year limited manufacturer's warranty

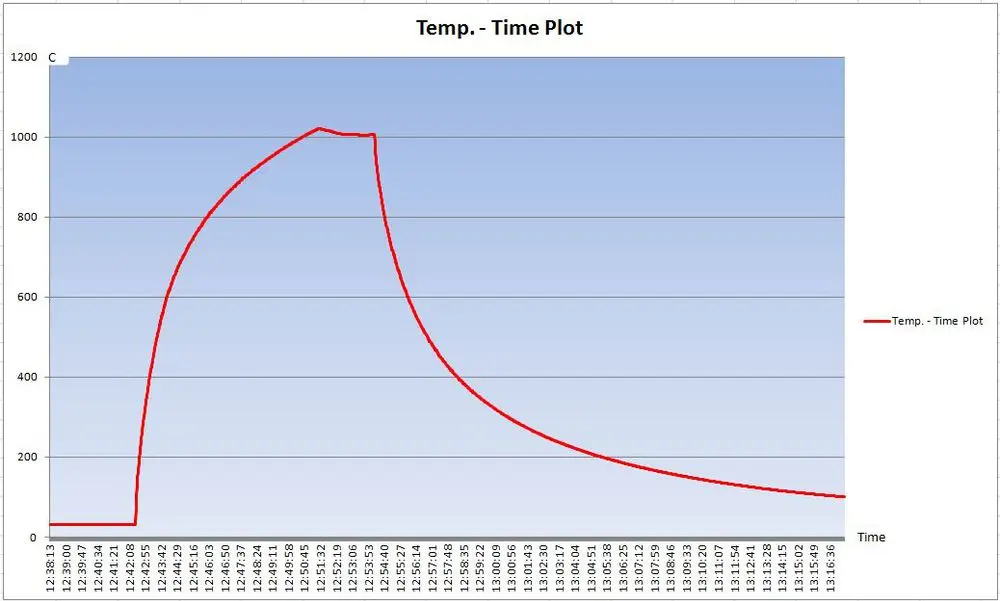

Heating temperature curve of RTP tube furnace

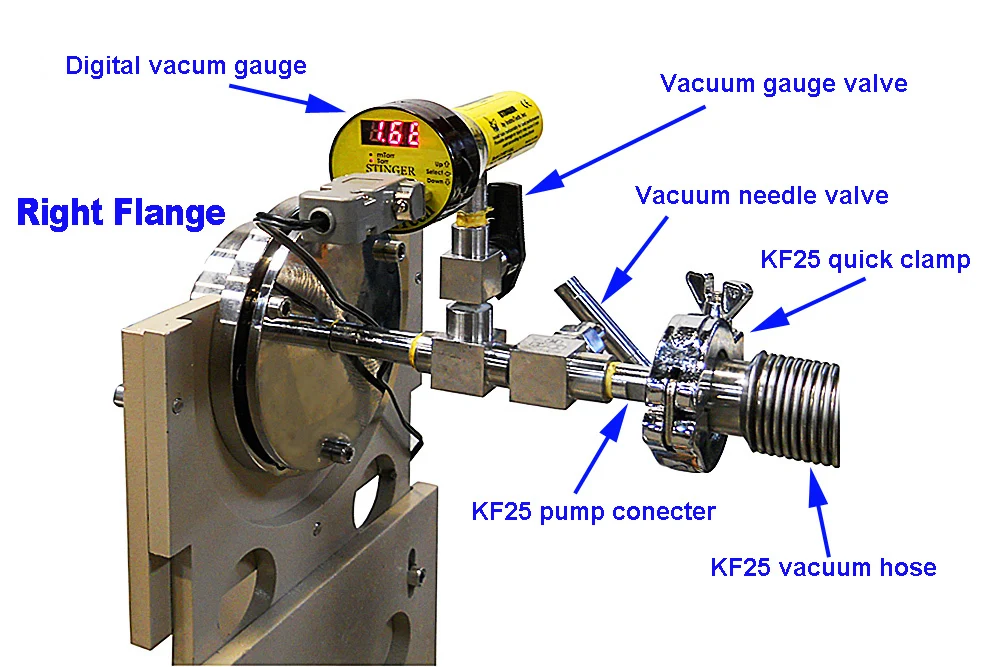

Vacuum flanges of RTP tube furnace

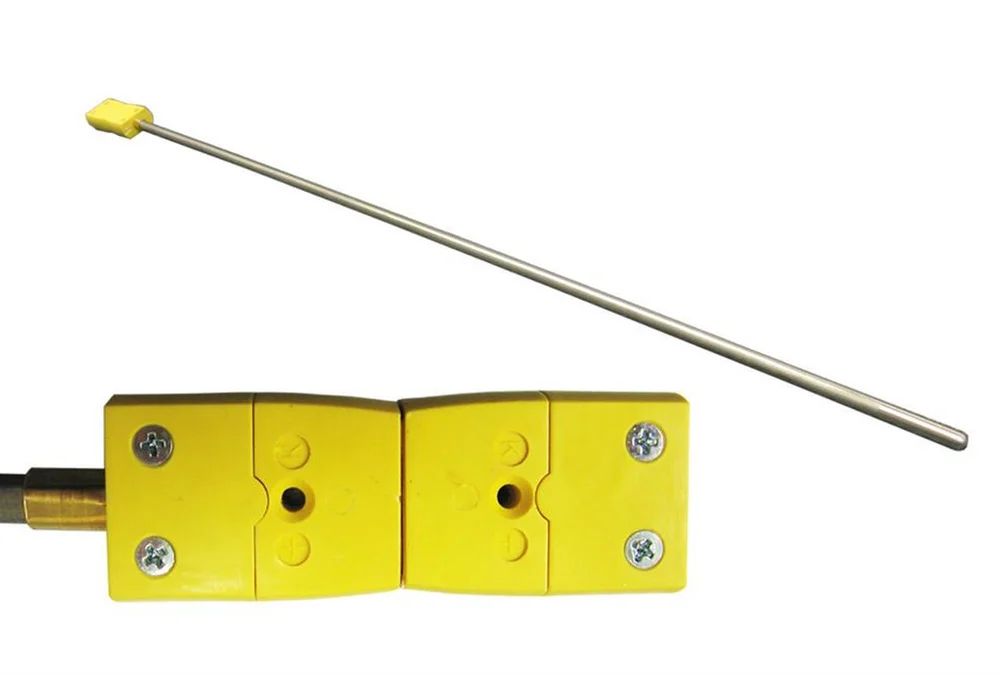

K Thermocouple of RTP tube furnace
