Bench-top simple type roll to roll electrospinning machine for the preparation of polymeric fibers

FOB Reference Price:Get Latest Price
$8,900.00 - $16,850.00 / Set | 1.0 Set/Sets (Min. Order)
Model Number:
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 Negotiable
Report Suspicious Activity
Quick Details
Coating Production Line, electrospinning system
semiconductor, silicon wafer, substrate, conductive glass,plant making
Machine Type:
Roll to Roll Electrospinning System
Roll-to-Roll Pilot Coating machine, spray coating
Place of Origin:
Henan, China
Brand Name:
208 - 240 VAC
2000W, 2000W
805mm(L) x 435mm(W) x 565mm, 805mm(L) x 435mm(W) x 565mm
CE, CE Certificated
1 YEAR, 1 Year
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Key Selling Points:
Easy to Operate
After Warranty Service:
Online support
Applicable Industries:
Manufacturing Plant, laboratory
Local Service Location:
United States
Showroom Location:
United States
vacuum coater machine
Product name:
Roll to Roll Electrospinning system
Pumping rate:
Supply Ability
Supply Ability:
100 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Plastic paper inside, polyfoam filled, plywood box outside
Picture Example:
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 To be negotiated

Bench-top simple type roll to roll electrospinning machine for the preparation of polymeric fibers

Product Description

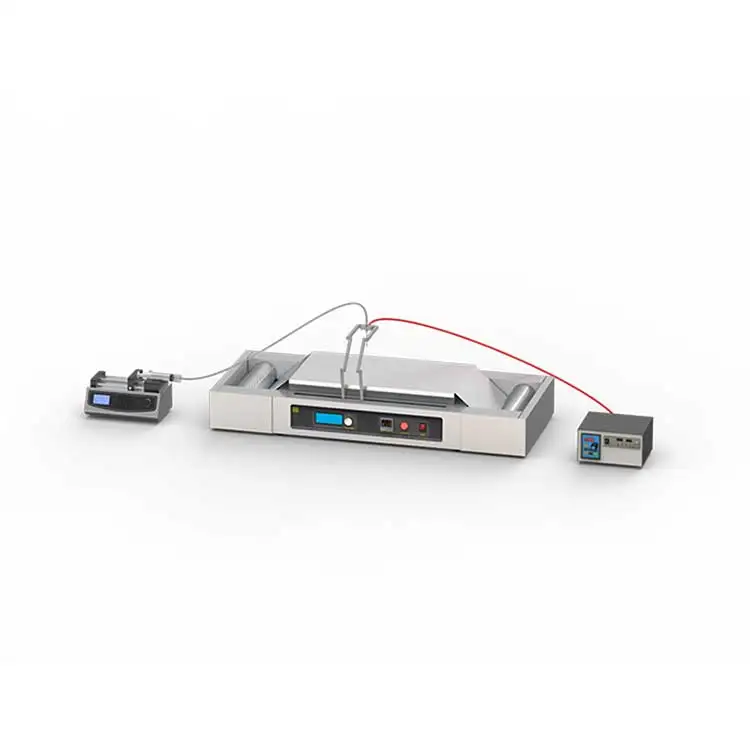

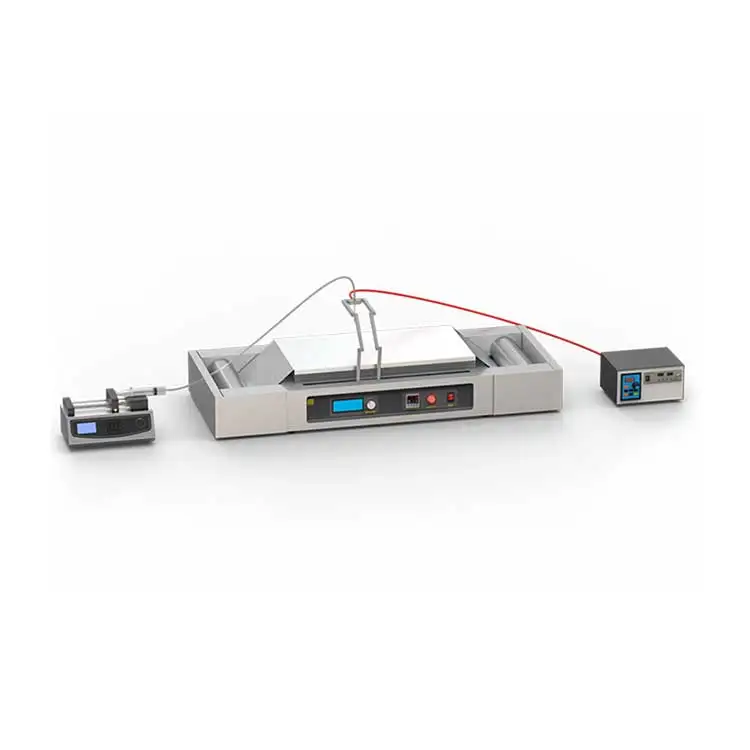

A bench-top electrospinning system with automatic r2r substrate feeding and retrieving unit. The syringe pump that renders a smooth and uninterrupted flow enabling uniform spinning. The high voltage power supply delivers 0-50 kV output voltage range with a maximum current capacity of 1 mA. Heatable vacuum bed assists coating bake-out before collecting. Such system provides an attendant workflow for nanofiber spinning, coating bake-out, and collecting.

Technical parameters:

· Heatable Vacuum  Bed with the Roll to Roll system and stand

· Total dimensions: 805mm(L) x 435mm(W) x 565mm(H)

· The height of the Vacuum Bed: 180mm.

· The height of needle holder: 385mm.


· Linear configurated 5 syringe needles ensures a uniform coverage over up to 160mm width.

· Automatic roll to roll system with precise rolling speed control.

· Heating bed up to 100C for coating bake-out.

· Syringe pump provides a constant stream flow of polymer base solutions.

· Single voltage supply cable minimizes the repulsion of the jets between the spraying heads.

· Removable spraying heads accommodates various coating widths.

Spraying Head (Needle) and Supporting Stand

· Hight and position adjustable supporting stand

· Removable Spraying Heads (up to 5 needles).

· Single Voltage input cable minimizes the repulsion of the jet between the needles.

· Distance between each needle: 25mm

· Needle O.D.: 0.9mm

· Needle I.D.: 0.6mm

· Needle Length: 12mm

· Maximum distance from needle to heating bed: 235mm

· Minimum distance from needle to heating bed: 70mm

High Voltage Power Supply

· 0 - 50 kV single output, 1 mA  current

· Digital voltmeter and current meter

· Output voltage and current can be set by using knobs on the front panel and read from the digital display

· Constant current / constant voltage modes available

· AC 220V, 50/60Hz, 50W  power consumption

· Dimension: 155mm(L)×245mm (W)×125(H)

Syringe Pump

· LCD touch screen controlled infusion syringe pump for precise solution feeding.

· Easy to use.

· Pumping rate 0.1 - 45mm/min

· Travel Range: 0.001 - 120mm

· Micro speed adjustment : 0.01 - 8mm/min

· A 250ml Syringe is included for immediate use.

· 208 - 240 VAC

· Dimension: 300mm(L)×265mm(W)×260 mm (H)

Heatable Vacuum Bed

· Heating bed for solution drying

· PID temperature controller with the precision of +/- 1C.

· Heats up to 100C

· 208 - 240 VAC

· 2000W Power.

Roll to Roll System

· Compact roll to roll system up to 200mm width

· Motor rpm (Controller display) Range: 1 ~ 41rpm

· Gear Head's reduction ratio: 100k

· Actual substate traverse speed range: 2.2 mm/s ~ 117.2 mm/s

· 110VAC

Sample Display


The picture below is the result of the electrospinning coating experiment that conducted by using the mixture of PVDF and DMAC with the weight ratio of 1:20.


· One-year limited warranty with lifetime support


online service

Founded in 2005, Zhengzhou CY Scientific Instrument Co., Ltd. is a company specializing in the development and production of laboratory technology research equipment. The products are mixed, pressed, burned, cut, ground, polished, coated, analytical equipment and related consumables. Products include laboratory sintering equipment, coating equipment and so on. At present, it has been exported to 25 countries and regions such as the United States, Europe, and Southeast Asia, and has been well received by various scientific research units.


We have a mature technology research and development team, the number of technicians is 33, the company has 150 people, more than 500 square meters of office space, the factory covers an area of about 1,500 square meters located in Zhengzhou High-tech Zone Electronic Industrial Park. The products are mainly located in the research market, serving scientific research in the labs of universities and colleges, and can also customize products according to your needs.
